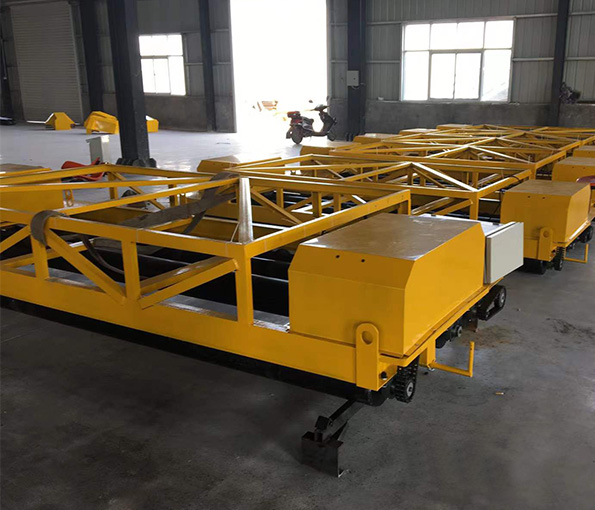

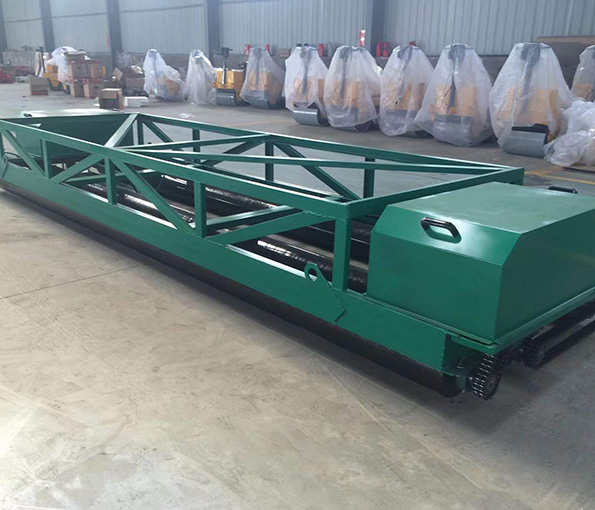

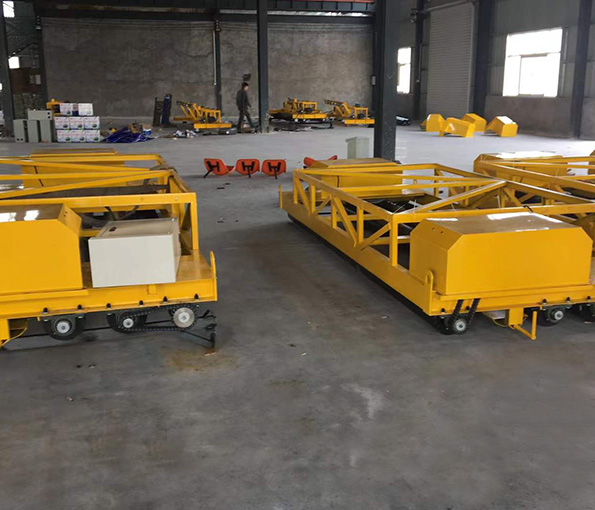

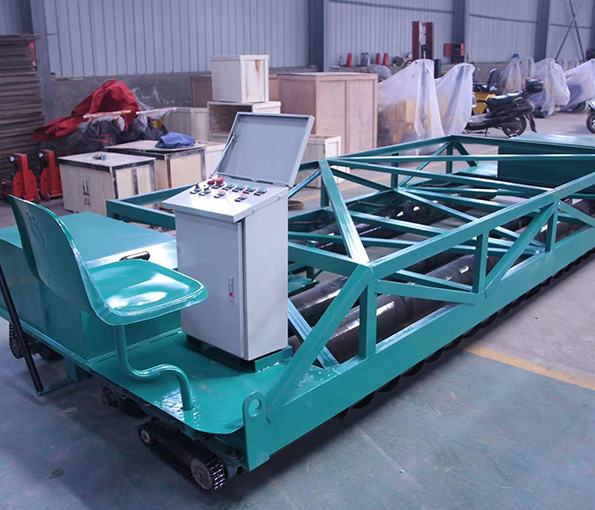

FVP219 Double frame concrete vibrator paver machine with motor.
specially designed for road construction
3 to 8 meters working width available.
FVP219 Double frame concrete vibrator paver machine with motor.
specially designed for road construction
3 to 8 meters working width available.
| Model | FRP219 |
| Paving Width | 3-8m |
| Roller Diameter | 219mm |
| Quantity of Roller | 3 rollers and 1 Auger |
| Travel Speed | 4-9m/min |
| Max Paving Thickness | 300mm |
| Motor | 380v/50hz |
| Walking Tube Rotation rate | 36rpm |
| Vibration Tube Rotation Rate | 300rpm |
| Weight | 700-900kg |
| Dimensions | Lx1800x800mm Lx1700x1100mm |
