Greatly improve the concrete smoothness and compaction.
Prolong the service life of concrete floor
used in modern industrial workshop, large shopping malls warehouse
Greatly improve the concrete smoothness and compaction.
Prolong the service life of concrete floor
used in modern industrial workshop, large shopping malls warehouse
| Model | LS-325 | |
| Dimension mm | L2748*W2900*H2044 | |
| Weight | 230kg | |
| Generator | Honda EC2500CX (2.6kw, Single cylinder four stroke generator set) | |
| Package | box 1: 2700*1050*1350MM box 2: 2900*750*920 | |
| Laser Generator | LEICA(Switherland) (635nm visible laser,self-leveling, level error≤±1.5mm/30m, effective launch distance 300m) | |

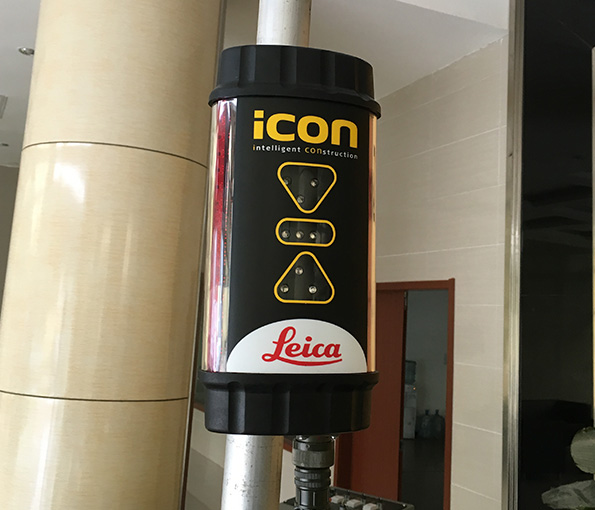

| Laser Receiver | LEICA(Switherland) (effictive receiving distance 300m, accuracy of dead zone≤±2.5mm) | |
| Control System | AC SERVO system | |
| Drving System | PHASE(Italia) (stepless adjustment, turning faster than 1:2.5) | |
| Airframe Adjustment system | Level sensor automatic adjusting system | |
| Slope working | single phase slope automatic adjustment (option: bipolar slope automatic adjustment system) | |
| Wheel tyre | 733nm ATV(1.8-2.2BAR) or 3.0-21 narrow tyre(1.6-2.1 BAR) | |
| Vibrating System | Eccentric vibration motor. 3000HZ | |
| Centrifugal force | 100kg | |
| Vibrating plate | Aluminum alloy | |
| Scraper blade | Aluminum alloy | |
| Scraper adjustment | Computer control, automatic adjustment | |
| Working length | 2.6M | |
| Reverse Speed | 2.5km/h | |
| Min. Ground Clearance | 355mm | |
| Ground Flatness | ≦±2mm | |
| The Ground elevation error | ≦±7mm/100m | |
| Max. working Radius | ≦200m | |
| Working Efficiency/hour | 200m²/h–350m²/h | |
| FOB QINGDAO | $15,000.00 | |
