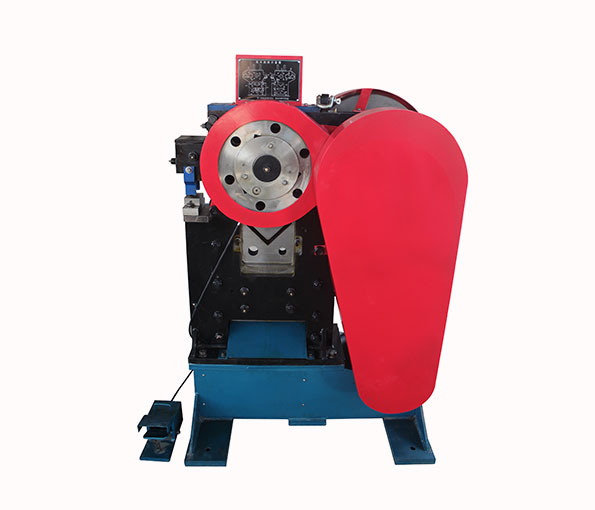

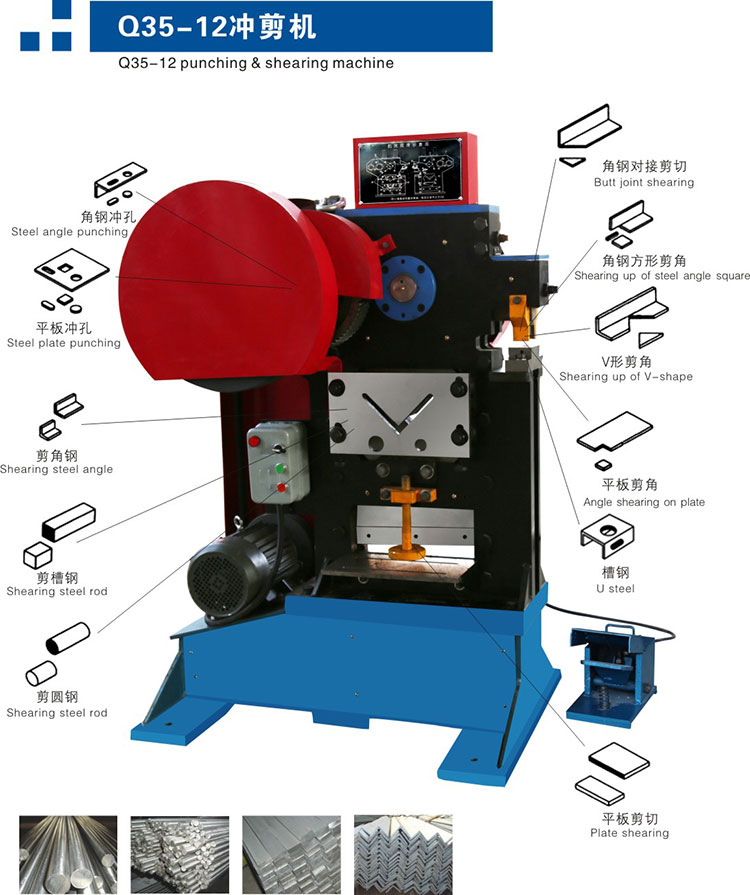

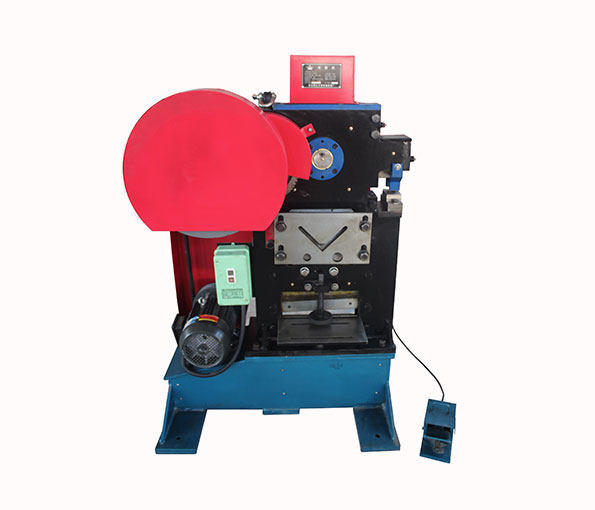

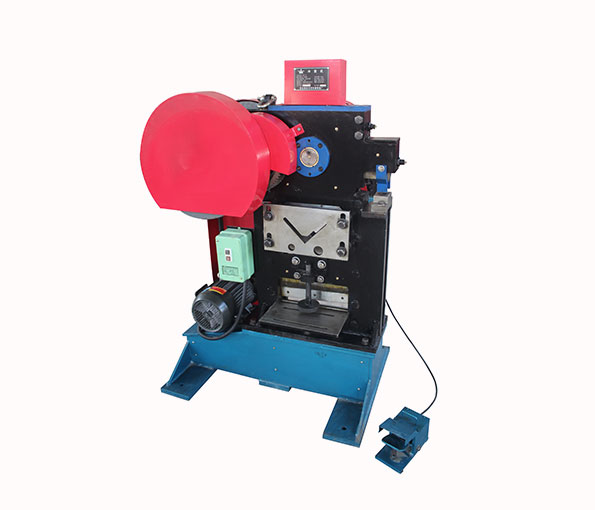

QA35-12 Metel Punching Machine

Metal sheet punch press machine hole punching machine for steel sheet
Suitable for forming, blanking, punching, bending and other cold stamping process.
Protective fence and the safety interlock to ensure the operation safety

Share:
DESCRIPTION

Metal sheet punch press machine hole punching machine for steel sheet
Suitable for forming, blanking, punching, bending and other cold stamping process.
Protective fence and the safety interlock to ensure the operation safety

Model no. Parameter QA32-8B QA34-10 QA35-12
Max. Punching force 360KN 500KN 600KN
Cutter stoke length 27mm 30mm 36mm
Cutting frequency 30 times/min 30 times/min 30 times/min
Motor power 2.2KW, 380V, 50HZ 3KW, 380V, 50HZ 4KW, 380V, 50HZ
Size 900x500x1100mm 1000x600x1200mm 1100x600x1450mm
Weight 500kg 700kg 1300kg
