Rebar Machine
INQUIRY

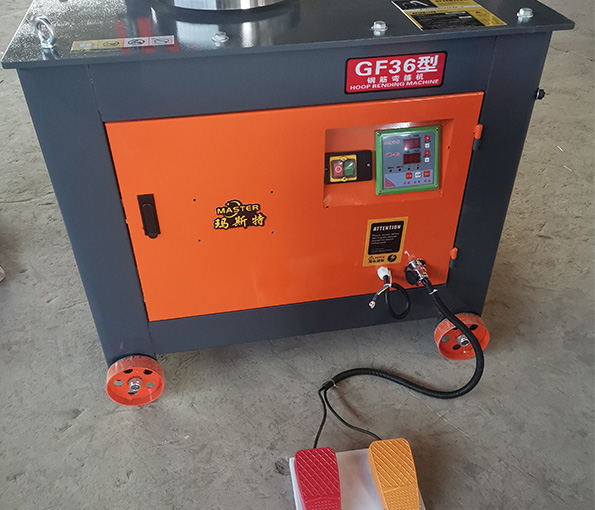

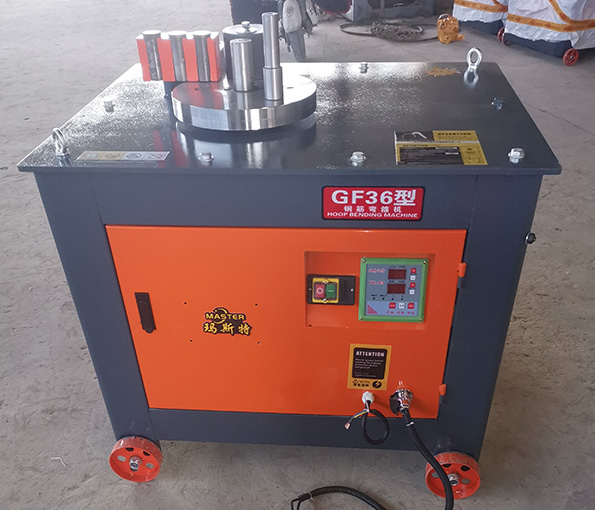

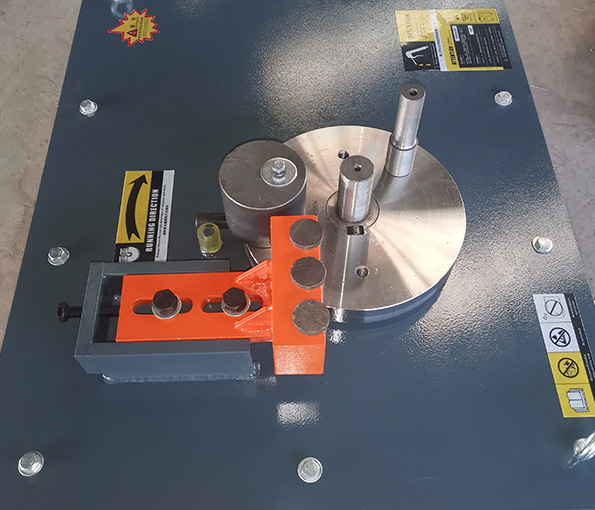

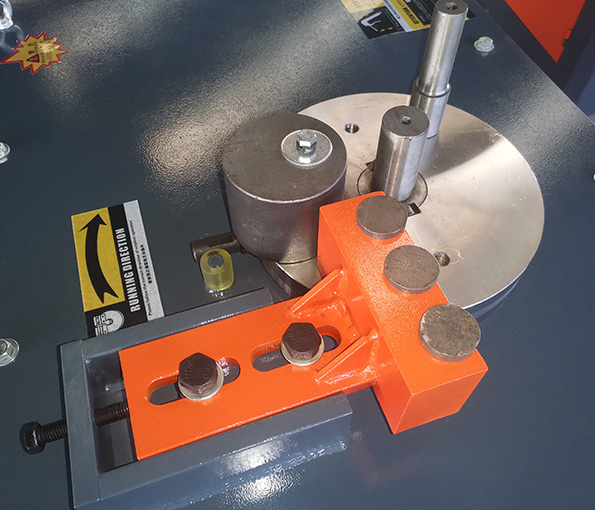

GW36 6-28mm Stainless Rebar Steel Rod Bar Stirrup Bender Bending Machine，
high-density fine cast steel, sturdy and durable，
high-quality # 45 steel
| Type | GW20 | GW25 | GW32 | GW32H | GW36 |
| Power | 2.2KW | 3KW | 3KW | 3KW | 3KW |
| Voltage | 220V, 380V, 415V and Customized | ||||
| Motor speed | 1440r/min | ||||
| Bending speed | 25-30r/min | 25-30r/min | 25-28r/min | 15-18r/min | 15-18r/min |
| Round bar | 6-20mm | 6-25mm | 6-28mm | 6-30mm | 6-32mm |
| Rebar | 6-18mm | 6-22mm | 6-25mm | 6-28mm | 6-28mm |
| Angle error | ±1° | ±1° | ±1° | ±1° | ±1° |
| Max bending angle | 180° | 180° | 180° | 180° | 180° |
| Weight | 120KG | 140KG | 175KG | 260KG | 340KG |
| Dimension | 830*580*930mm | 950*650*1160mm | 880*800*1150mm | 850*800*1150mm | 800*800*850mm |
