Road Construction Machine
INQUIRY
Used for compaction of sand, gravel, triad soil, sandy soil, asphalt gravel, concrete and clay
Widely used in the construction of highway, railway subgrade, bridge, reservoir dam, wall, various ditches and other narrow areas.
Used for compaction of sand, gravel, triad soil, sandy soil, asphalt gravel, concrete and clay
Widely used in the construction of highway, railway subgrade, bridge, reservoir dam, wall, various ditches and other narrow areas.

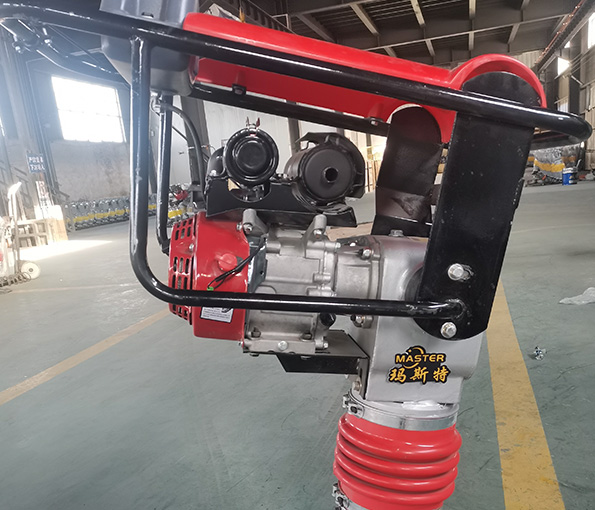

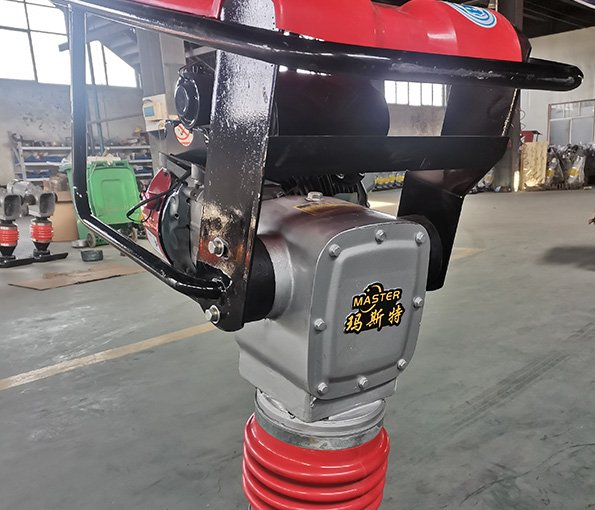

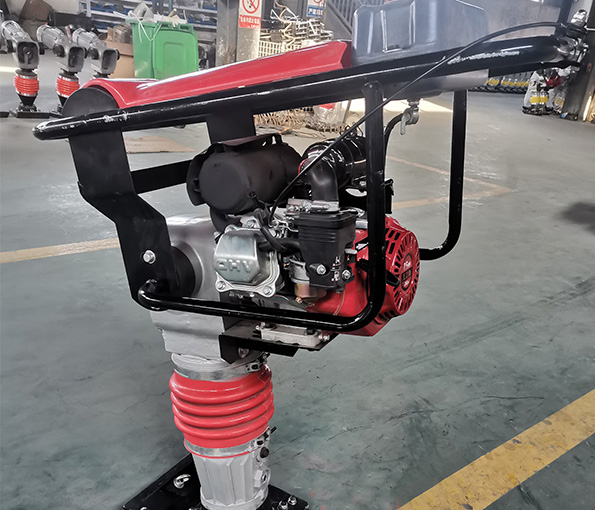

With Honda petrol engine
| Model | FTR80 | FTR100 | FTR110 |
| Plate Size（mm) | 300*330 | 300*330 | 300*330 |
| Impact Force(kn) | 15 | 20 | 25 |
| Body Material | Cast Iron | Cast Iron | Aluminum |
| Speed(m/min) | 0-25 | 0-25 | 0-25 |
| Engine | Honda Petrol | Honda Petrol | Honda Petrol |
| Power(hp) | 5.5 | 5.5 | 5.5 |
| Oil Tank Capacity(L) | 3 | 3 | 3 |
| Weight(kgs) | 85 | 90 | 95 |
| Dimension(mm) | 600*600*1000 | 600*600*1000 | 600*600*1000 |
